Industrial Thermostat Temperature Controller 110V 220V For Infrared Gas Burner

Product Name: Industrial Thermostat Temperature Controller 110V 220V For Infrared Gas Burner

We can customize thermostat according to your requirement, it can control 1~40pcs gas burners.

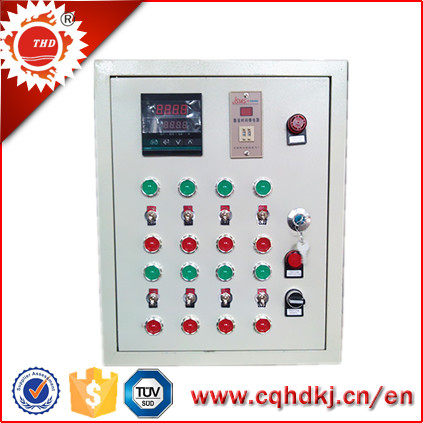

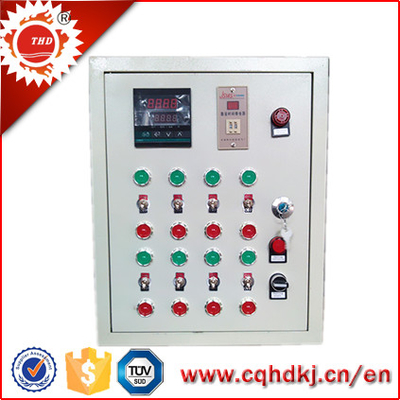

Thermostat outside :

Thermostat inside :

I Working Purpose

The thermostat controls gas heater/burner to keep stable temperature and save gas.

When  reaches setting temperature, the thermostat controls gas burner/heater stop working;

While under setting temperature, the thermostat controls gas burner/heater start working again.

II Composition of Thermostat

It includes a thermocouple, a adjustable temperature controller, powder switch, ignite switch, working indicator and alarm.

One thermostat can control 1~40sets gas heater/burner.

III Working Principle

1.  Open gas cylinder → adjust gas pressure to 3000~5000pa → turn on the main power of electric

controller → setting required temperature → turn on ignition switch→Solenoid valve supply gas /

3 pins ignite gas burner/heater → gas burner/heater working normally.

2. Thermocouple detect temperature → reach setting temperature →

Half or all gas burner stop working → lower than setting temperature →

Ignition automatically by controller → Gas burners restart working.

IV Flameout Protection

When 3 pin failed ignite infrared burner/heater, pulse igniter will control solenoid valve stopping supply gas. So it avoids gas leakage.

Restart ignition: turn on ignition switch again.

V Connection

VI Installation system
