Manual Temperature Adjustable Gas Brooder Heater For Livestock

Key Attributes
Brand Name: Purple Horn
Model Number: Purple Horn2606
Place of Origin: China
Certification: CE
Minimum Order Quantity: 2
Price: Negotiable
Supply Ability: 5000pcs/month
Delivery Time: 3-7 workdays
Payment Terms: T/T, Credit card, Western Union, PayPal, Dragon Pay, L/C
Standard Packaging: Standard carton; Outer carton size: 31*39*33cm; Inner carton size: 38*28*16cm.
Product Custom Attributes
Gas Type:
LPG, Natural Gas, Butane, Propane, Biogas
Heat Output:
2.46KW/h, 2116Kcal/hr
Advantage:
20% Gas Saving Than Other Normal Infrared Gas Burner
Technology:
Covered With Rare Earth Catalyst On Honeycomb Ceramic Plate
Shell Material:
Imported Aluminized Plate, No Rust
Lifespan:
Above 11000 Hr
Product Description



Manual Temperature Adjustable Gas Brooder Heater For Livestock



Company profile



Established in 2005, Hefei Purple Horn E-Commerce Co., Ltd. is a professional manufacturer specializing in the research, development and production of infrared catalytic gas burners & heaters.





Description



Brooders are infrared gas heaters that keep the chicks warm for the first weeks after hatching when the chicks are no longer in the actual incubator. We call this the so-called ‘brooding period’. In the wild the sun can function as a brooder for a part of the day, giving the hens some ‘time off’ to leave the nest and search for food.

In broiler houses and rearing houses hens are completely absent, this is where Gas brooders take over this heating task. The Gas infrared brooders are therefore an important and essential part of a smooth transition from the incubator to a poultry house for day old chicken during the first weeks of a chicken’s life. After that period, a chicken can generally produce sufficient heat itself, so that it no longer needs additional heating.





Specifications



MODEL Dimension Weight Gas Type Heat Output Consumption
  mm kg   KW/h Kcal/hr NG(m3/h) LPG(kg/h)
Purple Horn2606 320*270*130 1.7 NG/LPG 2.46 2116 0.26 0.18
Purple Horn2608 automatic ignition 320*270*130 2.7 NG/LPG 2.46 2116 0.26 0.18
Purple Horn6806 675*235*95
2.8
NG/LPG 3.9 3400 0.39 0.27
Purple Horn6808 automatic ignition 675*235*95 3.7 NG/LPG 3.9 3400 0.39 0.27
Purple Horn5606 500*500*180
1.4
NG/LPG 2.46 2116 0.26 0.18

Manual Temperature Adjustable Gas Brooder Heater For Livestock 0

Manual Temperature Adjustable Gas Brooder Heater For Livestock 1





Advantages



♦ Energy efficient, 20% energy can be saved than non-catalytic infrared gas burner

♦ Conveyor rate: above 95%

♦ Reliability, Silent, light and compact

♦ Lower emissions to the air in the barn, CO≤80ppm; NOx≤10ppm; CHx≤50ppm

♦ Low maintenance, just keep the heater surface clean and gas supply normally

♦  Withstands high pressure washing

♦ Flame-out protection device

♦ Long use time: ≥11000hr

Manual Temperature Adjustable Gas Brooder Heater For Livestock 2





Operation



Manual Temperature Adjustable Gas Brooder Heater For Livestock 3





Application

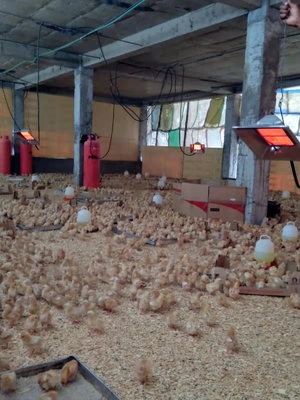

Widely used for kinds of poultry farming, chick house, piglet house, birds brooding etc.

It also can be used for patio, warehouse, resturant, ourtoor heating etc.



Manual Temperature Adjustable Gas Brooder Heater For Livestock 4





Other related parts



For the automatic series infrared gas heater Purple Horn2608 & Purple Horn6808, there is other parts for choice, such as regulator, capsule pressure gauge, thermostat, electric pulse igniter, ignition pin, 1/4'' solenoid valve etc.

Manual Temperature Adjustable Gas Brooder Heater For Livestock 5
