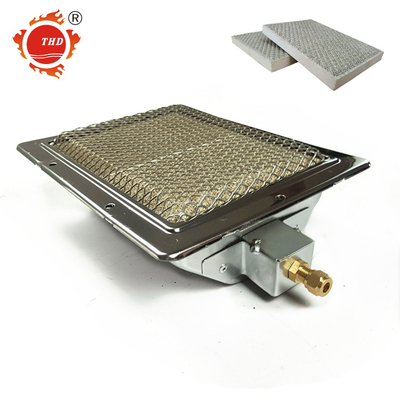

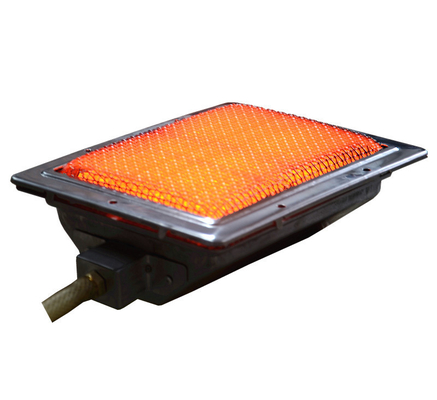

Flameless Ceramic Catalytic Bbq Burner 220*170MM 2.94KW Gas Infrared For Shawarma HD220
Key Attributes
Brand Name:
Purple Horn
Model Number:
HD220
Place of Origin:
China
Certification:
CE
Minimum Order Quantity:
1 Piece
Price:
US $11.00 - 20.00/ Piece
Supply Ability:
1000PCS per Month
Delivery Time:
within 7 work days
Payment Terms:
T/T
Standard Packaging:
Shockproof carton packing
Product Custom Attributes
Highlight
flameless ceramic catalytic bbq burner
,2.94KW gas infrared burner
,gas infrared burner 220*170MM
Product Name:
Gas Infrared Burner For Shawarma Machine HD220
Weight:
0.9KG
Dimension:
220*170*60mm
Gas Type:
Natural Gas/LPG
Nozzle:
Brass
Natural Gas Consumption:
0.31m³/h
LPG Consumption:
0.22kg/h
Heat Output:
2520Kcal/h
Power:
2.94KW
Advantage:
Above 20% Energy Saving
Product Description
220*170MM 2.94KW flameless ceramic catalytic bbq burner gas infrared burner for shawarma machine HD220
Products Description
Purple Horn Infrared Burner covers a process rare earth as catalyst, make the flameless burning occurred at the ceramic surface and radiate directly. So, the energy transfer rate is much higher than common ceramic burner.
Gas Infrared Burner Technical Parameters
Gas BBQ Grill Infrared Burner Main Material:
1. Shell: Aluminized steel sheet
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: Aluminized steel sheet
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: Aluminized steel sheet
Gas BBQ Grill Infrared Burner Main Specification:

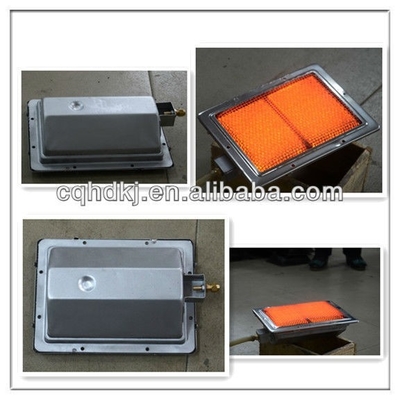

Details Images
Related Products
Our Advantages
1. Easy being fixed
2. Energy savings can be up to 20% per year
3. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
4. No need for a long and expensive preheating, it will reach comfort temperature very quickly
5. Long useful time: ≥11000hr
6. Easy to clean
7. It can cut off the gas automatically and protect the burner when the flameout
8. Silent, light and compact
9. High efficiency: it can come to working condition in 8 seconds
2. Energy savings can be up to 20% per year
3. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
4. No need for a long and expensive preheating, it will reach comfort temperature very quickly
5. Long useful time: ≥11000hr
6. Easy to clean
7. It can cut off the gas automatically and protect the burner when the flameout
8. Silent, light and compact
9. High efficiency: it can come to working condition in 8 seconds
Appliation

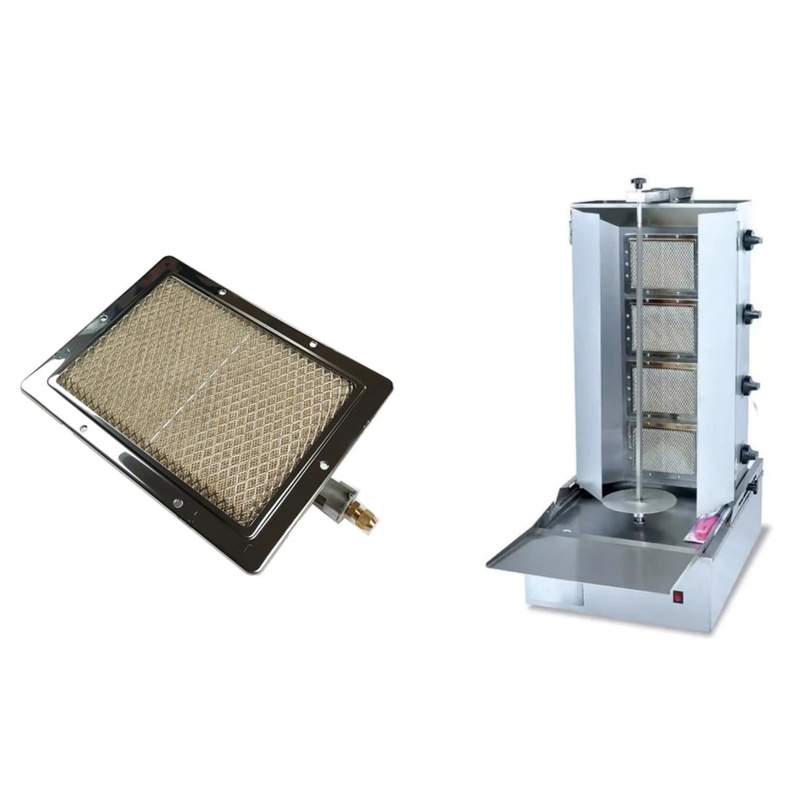

This kind burner now are Mainly used for barbecue oven , grill, chicken gas roaster , shawarma/ donner/kebab/gyros machine, bread oven,cake bakery equipment, cheese baking machine…
and can be installed at all directions, but at bottom with a heat resistance glass cover is best.
which will not keep burner working above 4 hours one time.
Product Packaging
Company Profile
Hefei Purple Horn Technology Co., Ltd is a professional manufacturer of Infrared Catalytic Gas Burner, bbq Gas Burner, Poultry heater, Gas brooder and Patio Heater etc.
Unique Rare-earth Catalyst Technology has gotten Patent certificate, it makes our burner to save 15~25% gas energy thannon-catalytic type.Located in Hefei City, southwest of China.
We owns advanced assembly lines, computer controlled injection machines, various high precision test equipment, sterilizing equipment and laboratory facilities. Professional engineers and technicians are employed could meet customer's new requirements demand.
We owns advanced assembly lines, computer controlled injection machines, various high precision test equipment, sterilizing equipment and laboratory facilities. Professional engineers and technicians are employed could meet customer's new requirements demand.
