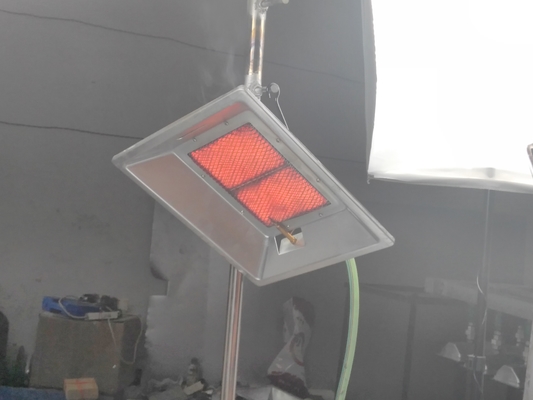

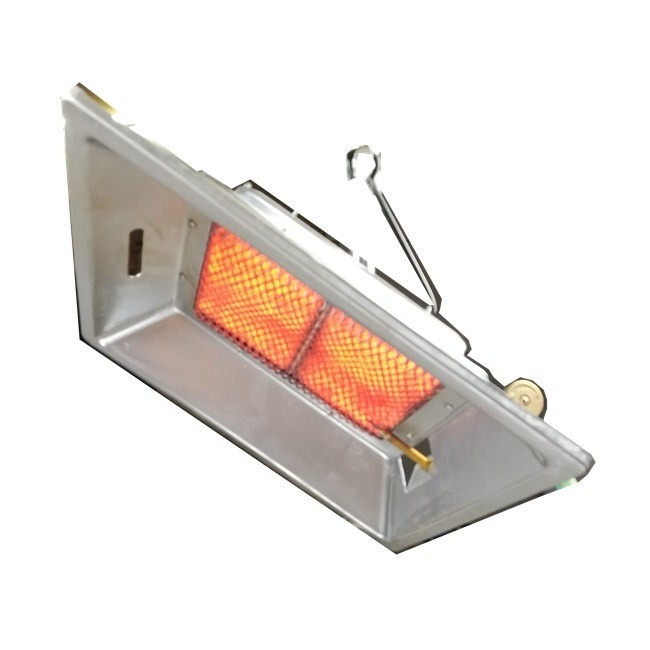

Energy-saving infrared natural gas heater poultry chicken brooder

Production Induction

Purple Horn Infrared Burner covers a process rare earth as catalyst, make the flameless burning occurred at the ceramic surface and radiate directly. So, the energy transfer rate is much higher than common ceramic burner.

Working gas source: natural gas / liquefied gas - 2800 ~ 5000pa; biogas more than 8000pa. When the air pressure is much higher than the working pressure, should to install pressure reducing valve at front (such as liquefied gas); when below the operating pressure, it’s required to install pressure pump(such as biogas).

System components: Manual ignition section required -- gas source, the main valve, pressure reducing valve, gas pressure gauge, manual gas heater.

Automatic ignition section required -- gas source, the main valve, pressure reducing valve, gas pressure

gauge, temperature control cabinet, thermocouple, automatic gas

heater and ignition parts

Operating Steps

Our Advantage

Our Infrared Catalytic gas burner —— Key Technique:

1. High performance Oxygen Storage Materials (OSM): Rare Earth —— Noble Technique for civilian

2. High specific surface area materials: resist high temperature

3. High efficient Energy saving: CO control technique; NOx control technique;

* Our Rare Earth materials own the international leading level, better than RHODIA from France.

* We are the only one Chinese manufacturer and supplier of Infrared Catalytic gas burner & hearter.

Advantages:

• Energy saving: 10% ~ 20%
• High energy convert rate: ≥95%
• Environmental friendly: CO≤80ppm; NOx≤10ppm; CHx≤50ppm
• High efficiency: Start work in 8 seconds.
• Long useful time: ≥11000h
• Flamess & Smokeless
• Resistance to Carbon formation, water knot, high sintering

Application

Poultry livestock heating:widely used in poultry heating,farrowing,nursery,grower-finisher,wean-to-finish,greenhouse etc.

Notice

◆Each gas matches special nozzle, don't change it by yourself.

◆If use LPG, pressure reducing valve &pressure gauge are necessory.

◆Connect all the parts required, check gas leakage or not.

◆Sure the requied Gas Pressure: LPG/ Natural gas 3~5Kpa, Biogas ≥ 8Kpa.

◆Only manual type could use biogas, don't try on automatic type brooder.

Company Introduction

Established in 2005, Hefei Purple Horn Technology Co., Ltd is a manufacturer specialized in the research, development and production of infrared catalytic burner, heater, brooder. We are located in Hefei, with convenient transportation access.
The products depend on the patent technique which is advanced in the field. The high performance Oxygen Storage Materials (OSM), the high specific surface area materials which can resist high temperature, the combustion catalyst and the correlated patent technique are all included.
