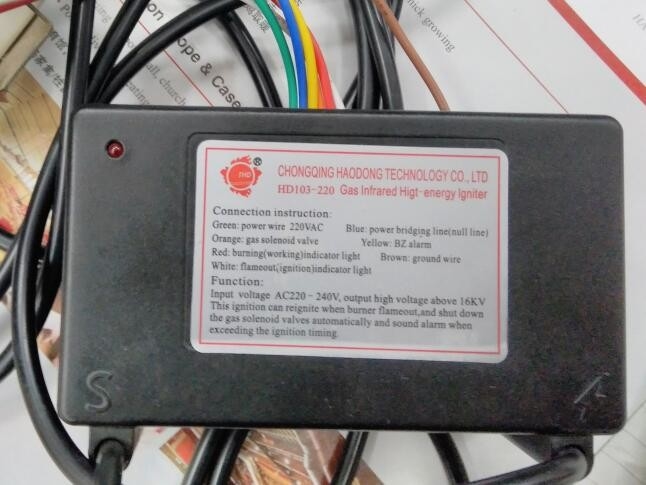

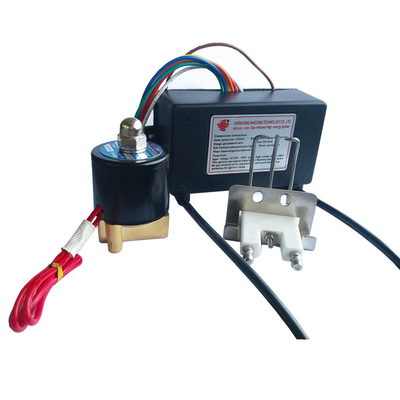

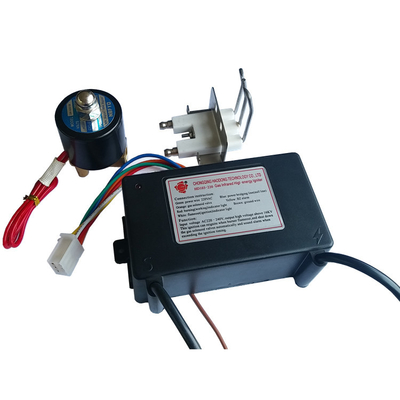

24V 3V 110V 220V Electric Pulse Igniter Burner Ignition Control Box 50Hz
Key Attributes
Brand Name:
Purple Horn
Place of Origin:
China
Product Custom Attributes
Highlight
24V Electric Pulse Igniter
,50Hz Electric Pulse Igniter
,Burner Ignition Control Box
Type:
Oven Parts,pulse Lighter
Material:
Metal,ABS,plastic And Metal
Color:
Black
Application:
Gas Oven,heating And Drying System,Gas Appliance Accessories,stove
Usage:
Gas Stove/Water Heater/Oven Parts/Stove Parts
Life Time:
More Than 50000
Product Description
24V 3v 110v 220v Electronic Pulse Igniter Burner Ignition Control Box
|
No
|
Items
|
Quotas
|
Remarks
|
|
1
|
Rated operational voltage
|
110/220VAC
|
|
|
2
|
Discharge frequency
|
50Hz
|
|
|
3
|
Arcing distance
|
≥6mm
|
|
|
4
|
Duration of ignition
|
10s
|
It can be adjusted according to your requirements
|
|
5
|
Duration of rekindling
|
10s
|
|
|
6
|
Discharge energy
|
≥4J
|
|
|
7
|
Discharge cycle
|
≤400ms
|
|
|
8
|
Width
|
≥12μs
|
|
|
9
|
Deferent high pressure
|
≥15KV
|
24V 3v 110v 220v Electronic Pulse Igniter Burner Ignition Control Box
* Electric ignition or switching control ignition
* Ignite the gas again automatically if the fire went out accidentally.
* Automatic monitoring or photoelectric control. If the fire went out, it can give warning automatically.
* If it failed to ignite the gas or the fire went out accidentally, it can cut off the gas supply immediately.
* Technology of Single-chip and digital microcomputer
* lightning proof
