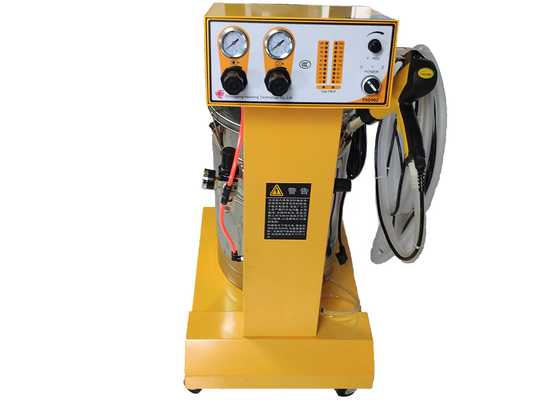

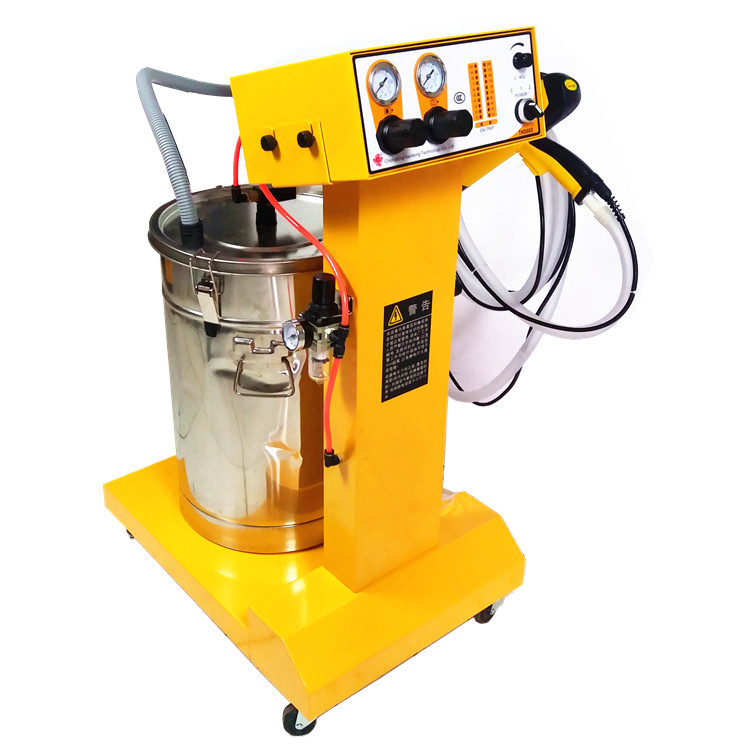

110V 240VAC Powder Spraying Machine 50Hz - 60Hz Industrial Powder Coater Machine
Key Attributes
Brand Name:
Purple Horn
Place of Origin:
China
Minimum Order Quantity:
2 pcs
Supply Ability:
1000pcs each week
Delivery Time:
2-7 days
Payment Terms:
L/C, T/T, Western Union
Standard Packaging:
carton
Product Custom Attributes
Highlight
60Hz Powder Spraying Machine
,240VAC Powder Spraying Machine
,110V Powder Coater Machine
Name:
Powder Spraying Machine
USe:
Powder Coating Line
Type:
Manual And Electric
Capacity:
55L
Product Description
Powder Coating Machine Powder Spraying Machine Industrial
electrostatic spray machine, using, advanced technology, imported original, reasonable design, powder flow, special high-pressure automatic tracking, suitable for difficult, complex groove spray. In the spraying process, the voltage and current are adjusted automatically to form the best static electricity and form a uniform coating film on the surface of the sprayed object, which is more suitable for advanced coating.
| ELECTRICAL DATA GALIN ELECTROSTATIC POWDER COATING MACHINE (PHIRST) |
|
| Nominal input voltage | 110V 240VAC |
| Frequency | 50 - 60Hz |
| Connected load (without vibrator) | 140 VA |
| Nominal output voltage (to the gun) | eff.10 V |
| Nominal output current (to the gun) | max. 1.2 A |
| Connection and output for vibrator (on Aux output) | 110/230 VAC max. 100 W |
| Connection for rinsing function (valve) | 24 VDC max. 3 W |
| Temperature range | 0°C - +40°(+32°F - +104°F) |
| Max. surface temperature | 120 °C (+248 °F) |
| Approvals | II 3 D IP54 120 °C |
| PNEUMATICAL DATA GALIN ELECTROSTATIC POWDER COATING MACHINE (PHIRST) |
|
| MAX.input pressure | 10bar / 145psi |
| MIN.input pressure | 6bar / 87psi |
| Max.water vapor content of the compressed air | 1.3g/Nm³ |
| Max.oil vapor content of the compressed air | 0.1mg/Nm³ |
| Max.compressed air consumption | 8Nm³/h |
| AVAILABLE POWDER GALIN ELECTROSTATIC POWDER COATING MACHINE (PHIRST) |
|
| Epoxy Powder: | √ |
| Teflon Powder: | √ |
| Metal Powder: | √ |
| Enamel Powder: | × |
