Electric Gas Oven Temperature Control System Thermostat Industrial Digital Control

Key Attributes
Brand Name: Purple Horn
Place of Origin: China
Minimum Order Quantity: 1 pc
Supply Ability: 1000pcs each week
Delivery Time: 2-7 days
Payment Terms: L/C, , T/T, Western Union
Standard Packaging: carton
Product Custom Attributes
Highlight

Thermostat Oven Temperature Control System

,

Digital Oven Temperature Control System

Usage:
Industrial
Accuracy:
+-0.5℃ Or +-0.1℉
Theory:
Temperature Controller,Temperature Sensor
Power Supply:
100-240V AC / 12-36V DC,AC210~ 240V 50/60Hz
Temperature Range:
0-850
Backlight:
White
Product Description



Gas Electric Oven Thermostat Temperature Controller Box Industrial Digital Control



ampling speed 2 times per second
Relay capacity AC 250V /3A Life of rated load>100 thousand times
Power supply AC/DC 100 ~ 240V(85-265V)
Total consumption < 6VA
Ambient environment Indoor use, temperature: 0 ~ 50℃, no condensation, humidity:<85%RH, altitude<2000m
Storage environment -10 ~ 60℃, no condensation
SSR output DC 24V impulse level, load<30mA
Insulation impedance Input, output, power to cabinet>20MΩ
ESD IEC/EN61000-4-2 Contact ±4KV /Air ±8KV perf.Criteria B
Pulse traip anti-interference IEC/EN61000-4-4 ±2KV perf.Criteria B
Surge immunity IEC/EN61000-4-5 ±2KV perf.Criteria B

Voltage drop&

short interruption immunity

 IEC/EN61000-4-29 0% ~ 70% perf.Criteria B
Dielectric strength

Signal input & output & power 1500VAC

1min<60V Low voltage circuit between DC500V
Weight About 400g
Shell material PC/ABS (flame class UL94V-0)
Panel material PET(F150/F200)
Power-off protection 10 years, times of writing:1 million times
Panel protection class IP65(IEC60529)
Safe standard IEC61010-1 Overvoltage category Ⅱ, pollution level 2, level Ⅱ (Enhanced insulation)







Gas Electric Oven Thermostat Temperature Controller Box Industrial Digital Control Features:



Purple Horn Gas Burner Heater Thermostat Temperature Controller Box  use with a thermocouple.

It to automaticlly turn on/off the burner for control the temperature.

  • Switch the modes between turn on/off ;
  • Control temperature by setting the temperature setting value and the difference value;
  • Temperature calibration;

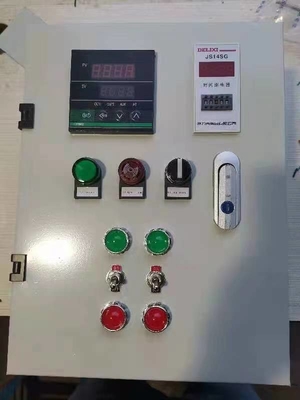

Electric Gas Oven Temperature Control System Thermostat Industrial Digital Control 0

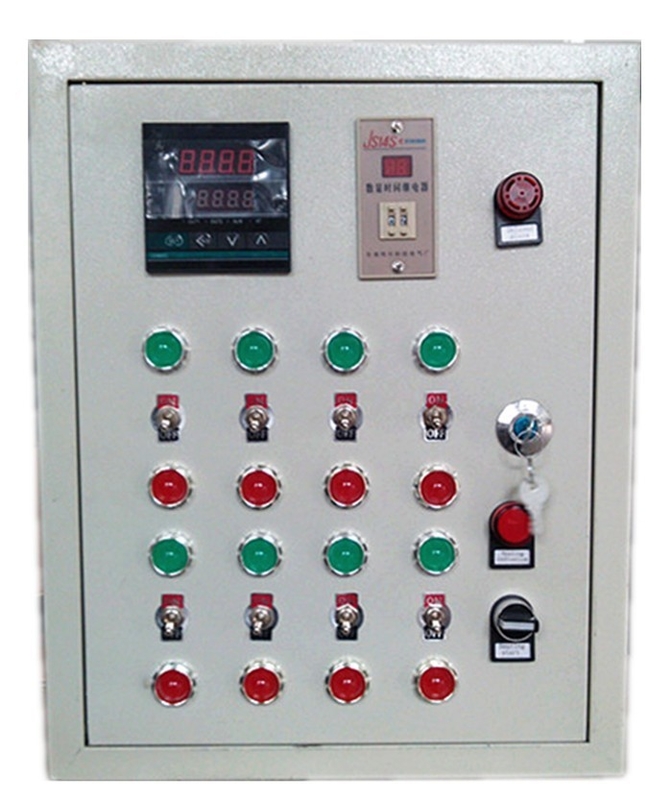

Electric Gas Oven Temperature Control System Thermostat Industrial Digital Control 1
