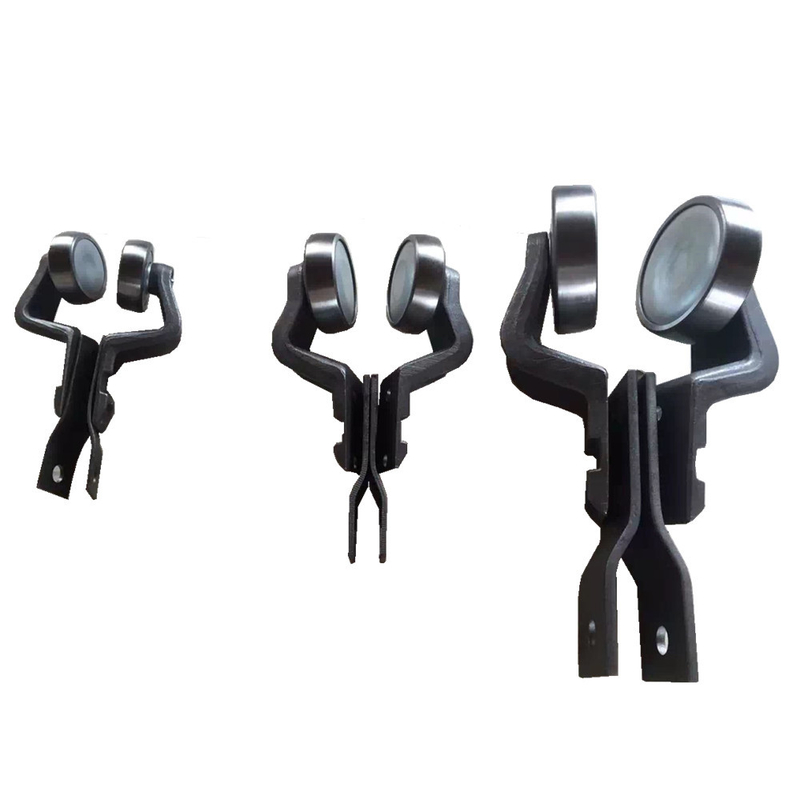

I Beam Trolley Overhead Conveyor Chain Heavy Duty X348 X 458 X678
Product Details:
| Place of Origin: | China |
| Brand Name: | HD |
| Model Number: | 5075 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10m |
|---|---|
| Packaging Details: | carton |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 m each week |
|
Detail Information |
|||
| Material: | Carbon Steel | Standard Or Nonstandard: | I Beam Trolley Type |
|---|---|---|---|
| Application: | Factory Transmission | Pitch: | 150 |
| Function: | Surface Treatment | Structure: | Roller Chain |
| High Light: | I Beam Overhead Conveyor Chain,Trolley Overhead Conveyor Chain,X678 Heavy Duty Conveyor Chain |
||
Product Description
I beam Trolley Overhead Conveyor Chain heavy duty X348 X 458 X678 Specification
| Chain | X348 | X458 | X678 |
| Separation of suspenison | T=76.2mm | T=100mm | T=160mm |
| Chain's catastrophic pull force | 110KN | 220KN | 400KN |
| carriage limite load (kg) | 300 | 500 | 800 |
| Carriage allowable load | 150 | 250 | 500 |
| Track | I 10 / I 12 | I 12 / I 14 | I 14 / I 16 |
| Minimum horizontal radius | R305 | R317 | R404 |
| Minimum vertical bending | R1500 | R2000 | R315 |
I beam Trolley Overhead Conveyor Chain heavy duty X348 X 458 Specification

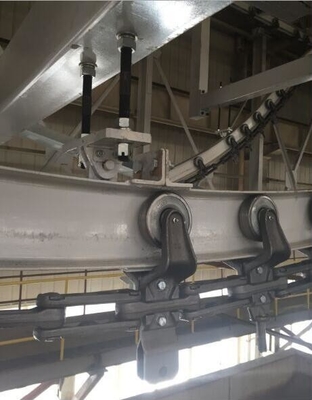

The overhead conveyor is used to fit requirements of a diverse range of applications. The load carrying capacity is up to 500 Kg. It suitable heavy workpiece. The conveyor is fitted with special design chain suitable for carrying the material over horizontal and vertical curves. There is trolley for hanging and carry. Long distance transport or storage of goods is possible by Haodong conveyor which can be mounted from roof structure keeping the floor space free.
I beam Trolley Overhead Conveyor Chain heavy duty X348 X 458 Feature
1.Available in 3″, 4″ and 6″ conveyor track heights
2.Heavy duty forged chain and trolleys. It could loading heavy product more than 100KGS
3.Welded design for rugged, long term use

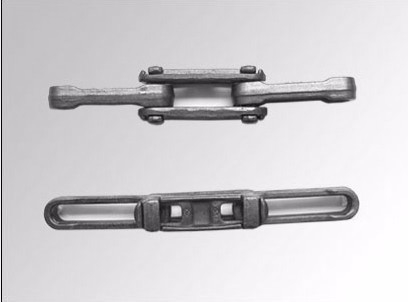

4.Drop forged, rivetless chain is highly flexible and requires no tools for assembly overhead conveyor chain
5.Open track and chain design, all components are exposed and visible.
