Infrared Gas Oven Burner For Industrial Food Steaming Cooking Grilling
Key Attributes
Brand Name:
Purple Horn
Model Number:
HD538
Place of Origin:
China
Minimum Order Quantity:
1 pcs
Price:
Negotiable
Supply Ability:
100 pcs per day
Delivery Time:
According to your qty
Payment Terms:
L/C, D/A, D/P, Western Union
Standard Packaging:
19 pcs a carton, carton size: 47*43*30cm
Product Custom Attributes
Highlight
Infrared Gas Oven Burner
,Grilling Gas Oven Burner

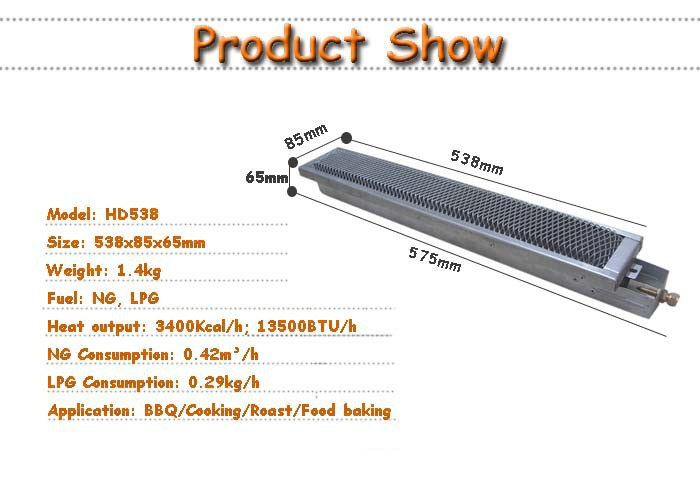

Size:
538*85*65mm
Weight:
1.4kg
Heat Output:
3400 Kcal/H
Season:
All Season
Product Description

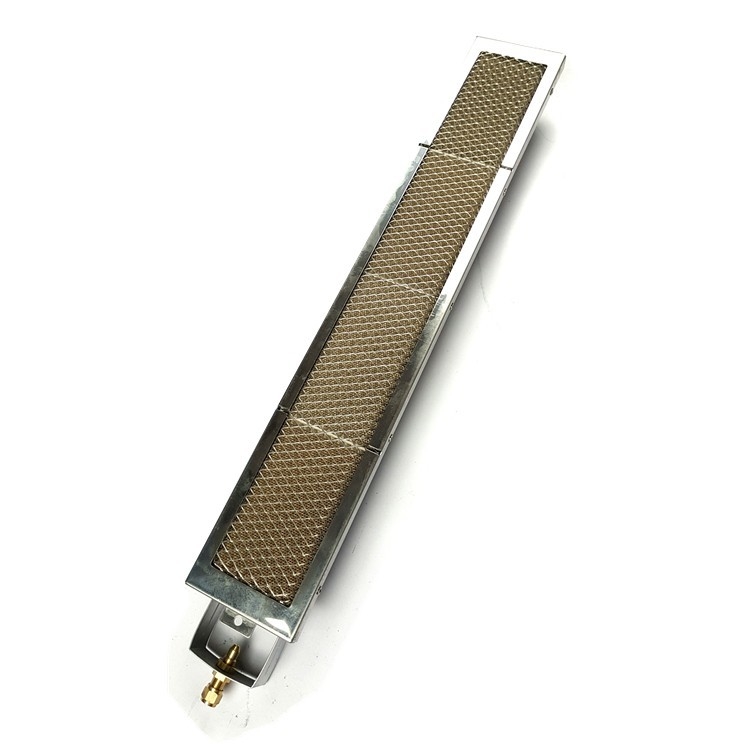

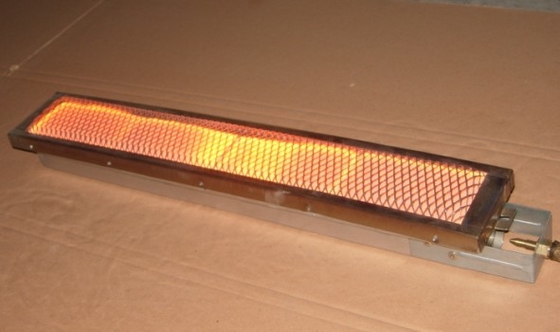

Infrared Gas Oven Burner For Industrial Food Steaming,Cooking Or Grilling
PRODUCT INTRODUCTION
Gas radiant ray burner for cheese making machine HD220

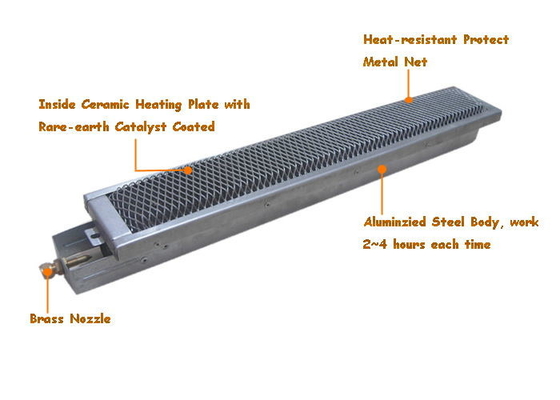

This heater is for industrial use, adopt the high quality import cordierite porous plate, adding rare earth catalyst to produce high quality infrared catalytic burner. Main advantages are energy-saving and reducing consumption, improving productivity, long life, easy to install and maintain, environmental protection and so on. The international quality, low prices.
Production specification
We have different models and size for industrial use heater, Also the power is different. It can adjust many applications.
Infrared Technology Feature.
As we know, usually, there are three ways to transfer heat, Radiation, Convection, Conduction and their thermal efficiency decrease in turn. Most Equipment is mainly by convection to heat air first and then, the heated air transfer to object. Heat loss is big. But, differently, infrared burner heat object directly by radiation and transfer rate will be much higher, usually it can save 20~30% gas energy and cost.

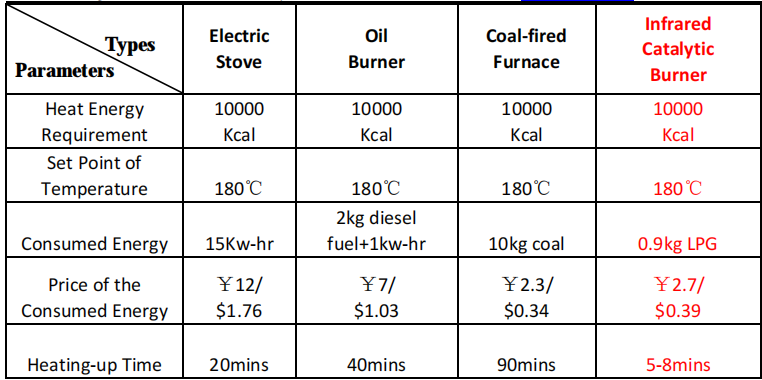

Common ceramic burner heats at ceramic plate and release infrared ray, but Purple Horn infrared burner plate covers rare earth catalyst to make the flameless burning occurred at the ceramic surface and radiate directly. So, the energy transfer rate is much higher. Following is a test result of energy consumption comparison:
Feature
You can see from above chart, the most two big advantages of infrared burner is
energy-saving and fast heating-up.
And compared with gas burner, Infrared catalytic burner have following advantages:
1. High energy transfer rate: usually the transfer rate can reach 95%,but common gas burner only 75%~80%.
2. High efficiency: Infrared burner will be in working condition for 8seconds.And installed with quantity as design, it can reach target temperature in ~10mins for empty oven and 25~40min when with cured objects in oven.
3. Single operation:one among them damage will not affect other's work, but if there’s any small problem with the gas burner, the curing will be stopped.
4. Heating directly: infrared burner heat object directly through radiation, not need other auxiliary equipment, like combustion chamber, blower….
5. Low cost of equipment: match with our accessories, only need a temperature controller and pressure instrument, connect them with gas pipes and wires, them it will work.
energy-saving and fast heating-up.
And compared with gas burner, Infrared catalytic burner have following advantages:
1. High energy transfer rate: usually the transfer rate can reach 95%,but common gas burner only 75%~80%.
2. High efficiency: Infrared burner will be in working condition for 8seconds.And installed with quantity as design, it can reach target temperature in ~10mins for empty oven and 25~40min when with cured objects in oven.
3. Single operation:one among them damage will not affect other's work, but if there’s any small problem with the gas burner, the curing will be stopped.
4. Heating directly: infrared burner heat object directly through radiation, not need other auxiliary equipment, like combustion chamber, blower….
5. Low cost of equipment: match with our accessories, only need a temperature controller and pressure instrument, connect them with gas pipes and wires, them it will work.
Product Application
This series is specially make for bbq, commercial grill , chicken, poultry roaster and so on,which will not keep burner working above 4 hours one time.
Company Introduction
Chonqqing Purple Horn Technology co.,ltd
Hefei Purple Horn Technology Co., Ltd was established in March 2005, over 11 years we focus on infrared catalytic combustion technology promotion and application in industrial and civil fields. To electric heater, our infrared catalytic gas burner will save 15%~20% operating cost for customers.
Golden customers from USA, Germany, Colombia, Venezuela, Brazil, Mexico, Australia, India, Philippines, Malaysia, Indonesia and other 20 countries and regions, so appreciated with good reputation.
Hefei Purple Horn Technology Co., Ltd was established in March 2005, over 11 years we focus on infrared catalytic combustion technology promotion and application in industrial and civil fields. To electric heater, our infrared catalytic gas burner will save 15%~20% operating cost for customers.
Golden customers from USA, Germany, Colombia, Venezuela, Brazil, Mexico, Australia, India, Philippines, Malaysia, Indonesia and other 20 countries and regions, so appreciated with good reputation.

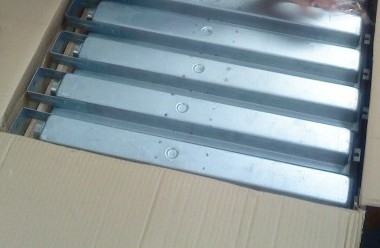

Product packaging
