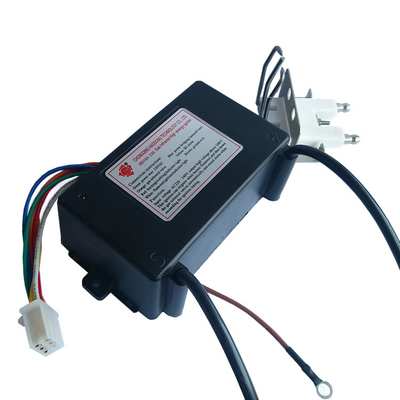

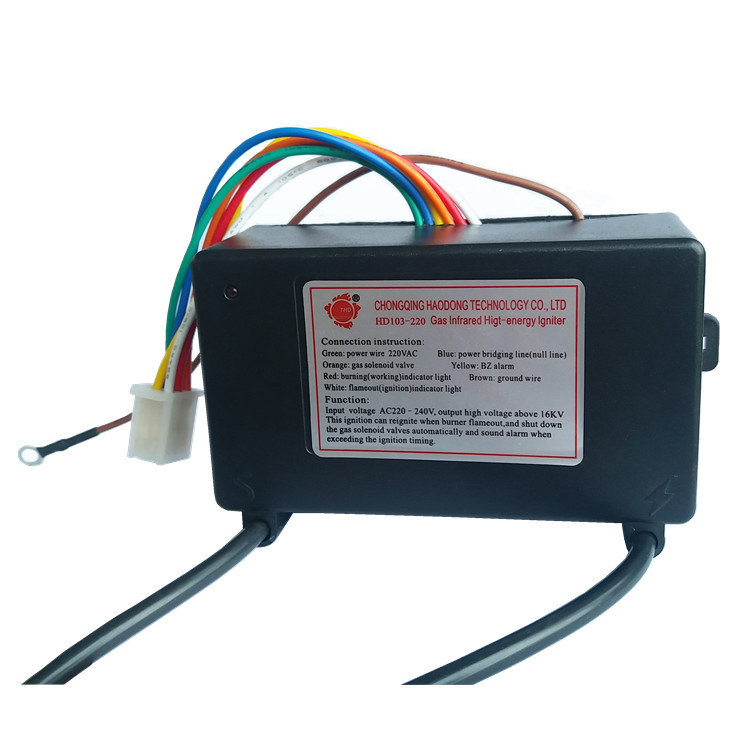

Electric Pulse Stove Spark Igniter AC 110V 220V For Industrial Infrared Burner
Key Attributes
Brand Name:
Purple Horn
Model Number:
103
Place of Origin:
China
Certification:
CE
Minimum Order Quantity:
1 piece
Price:
USD Negotiable
Supply Ability:
1000piece/piece per month
Delivery Time:
5-8 working day
Payment Terms:
L/C, T/T, Western Union
Standard Packaging:
shockproof carton packing
Product Custom Attributes
Highlight
Electric Stove Spark Igniter
,AC 110V Stove Spark Igniter
,AC 220V Gas Stove Pulse Igniter
Certification:
Ce
Warranty:
1 Year
Application:
Commercial, Gas Infrared Burner,Gas Industrial Stove
Installation:
Built-in
Place Of Origin:
Hefei, China
Model Number:
HD103
Product Description
Product Introduction
AC 110V Electric Pulse Igniter for Gas Infrared Burner,Infrared Heater,Industrial Burner
The Electric Pulse Igniter is mainly used for the ignition and control of industrial equipment with the energy of liquefied petroleum gas, natural gas and coal gas.
Product Specification
|
NO
|
Items | Quotas | |
|
1 |
Rated operational voltage | 110/220VAC | |
|
2
|
Discharge frequency | 50Hz | |
|
3 |
Arcing distance | ≥6mm | |
|
4 |
Duration of ignition | 10s | It can be adjusted according to your requirements |
|
5 |
Duration of rekindling | 10s | |
|
6
|
Discharge energy | ≥4J | |
|
7
|
Discharge cycle | ≤400ms | |
|
8
|
Width | ≥12μs | |
|
9 |
Deferent high pressure | ≥15KV |
Product Description
* Electric ignition or switching control ignition
* Ignite the gas again automatically if the fire went out accidentally.
* Automatic monitoring or photoelectric control. If the fire went out, it can give warning automatically.
* If it failed to ignite the gas or the fire went out accidentally, it can cut off the gas supply immediately.
* Technology of Single-chip and digital microcomputer
* lightning proof
test item
1.Vibration: amplitude: 1.5; vibratory frequency: 10Hz; it was tested in
the direction of X, Y, Z when it has vibrated for 30m.
2.Strength of wire coupling: Along the direction perpendicular to the
connection wire, the test was made when the wire has been exerted
20N dead load.
3.Blow test: At the height of 1m, in the direction of X.Y.Z, the test is
made when it has fallen off naturally on a board with a thickness of
30mm.
