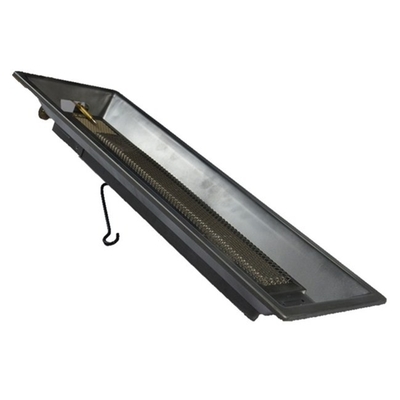

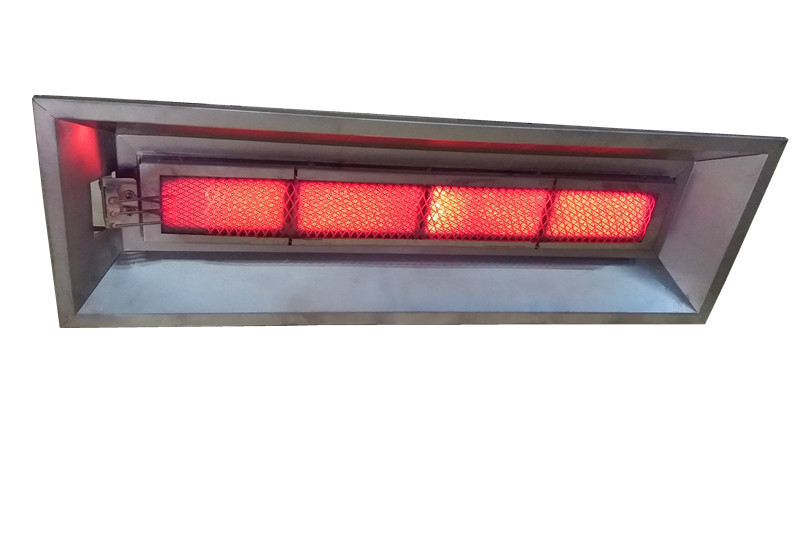

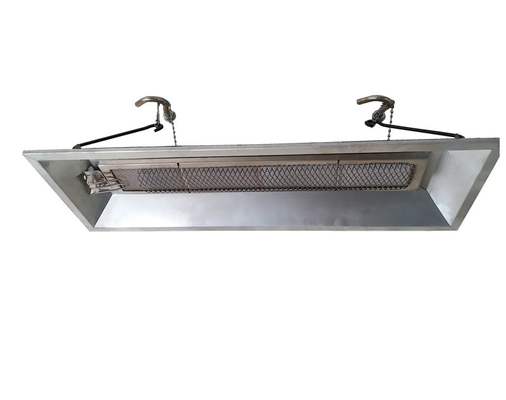

Infrared Gas Brooder Heater Direct Heating LPG Propane Chicken Brooder
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
| Model Number: | 6808 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton |
| Delivery Time: | 3-5 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs per week |
|
Detail Information |
|||
| Color: | Silver Grey | Safty Device: | Yes |
|---|---|---|---|
| Use: | Farm Heating | Material: | Galvanized Plate |
| Fuel: | LPG NG Biogas | Model: | 4 Model |
| High Light: | Infrared Gas Brooder Heater,Direct Heating Gas Brooder Heater,LPG Propane Chicken Brooder |
||
Product Description
Infrared Gas Brooder Heater LPG Propane Chicken Direct Heating
Now we are the first and only company who apply rare-earth catalytic combustion technology on infrared burner & heater, this kind of technology could save 10~20% energy than non-catalytic infrared heater
There is different model of gas heter with different covering area and capacity for chicken.
Infrared Gas Brooder Heater LPG Propane Chicken Direct Heating catalogue
|
Model
|
weight
|
Dimension
|
Gas Consumption
|
Heat Output
|
||
|
|
KG
|
mm
|
NG(m3/h)
|
LPG(KG/h)
|
KW/h
|
Kcal/h
|
|
Manual ignition
|
|
|||||
|
THD2606
|
1.7
|
heater cover 320*279*130 ceramic plate 188*135
|
0.2
|
0.15
|
2.9
|
2500
|
|
THD6806
|
2.8
|
heater cover 675*235*95 ceramic plate 500*68
|
0.42
|
0.29
|
3.9
|
3400
|
|
Electric ignition
|
||||||
|
THD2608
|
2.7
|
heater cover 320*279*130 ceramic plate 188*135
|
0.2
|
0.15
|
2.9
|
2500
|
|
THD6808
|
3.7
|
heater cover 675*235*95 ceramic plate 500*68
|
0.42
|
0.29
|
3.9
|
3400
|
|
|
|
Electric pulse igniter
|
220VAC/50hz or 110VAC/60hz
|
|||
|
|
|
ignition pin
|
3-pin type
|
|||
|
|
|
soelnoid valve
|
220VAC/50hz or 110VAC/60hz
|
|||
Infrared Gas Brooder Heater LPG Propane Chicken Direct Heating Advantage
1. Easy being fixed.
2. Energy savings can be up to 20% per year
3. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
4. No need for a long and expensive preheating, it will reach comfort temperature very quickly.
5. Long useful time: ≥11000hr
6. Easy to clean. There is filter to stop the feathers,racks.
7. It can cut off the gas automatically and protect the burner when the flameout.
8. Silent, light and compact
9. High efficiency: it can come to working condition in 8seconds.
GasBrooder Heater Technical Parameters
|
N
|
Items
|
Technical Parameters
|
|
1
|
Kinds of Gas
|
NG/LPG/Oil Field Gas/Artificial Gas
|
|
2
|
Perfect Combustion Temperature
|
≤380℃
|
|
3
|
Heat Source Temperature
|
850℃
|
|
4
|
Heating-up Temperature Range
|
25℃-80℃
|
|
5
|
Wavelength Range
|
4 um -15 um
|
|
6
|
Working Pressure
|
2000pa(NG)/2800pa(LPG)~~5000pa
|
|
7
|
Life Span
|
Above 11000hrs
|
|
8
|
Waste Gas Emission
|
CO≤80ppm;NOx≤10ppm;CHx≤50ppm
|
|
9
|
Conversion Rate
|
>90%
|
