CE Infrared Gas Chicken Brooder Heater Catalytic Poultry House Heating System
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
| Certification: | CE |
| Model Number: | 2606 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | to be negotiatable |
| Packaging Details: | shockproof carton packing |
| Delivery Time: | 5-8 working day |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 1000 piece/piece per month |
|
Detail Information |
|||
| Model: | THD2606 | Gas Type: | NG/ LPG |
|---|---|---|---|
| Size: | 320*270*130mm | Marketing Type: | New Product 2022 |
| Weight: | 1.7 | Feature: | Big Area Heating |
| Plate Lifespan: | Above 11000hrs | Conversion Rate: | Above 95% |
| High Light: | Infrared Gas Chicken Brooder,CE Gas Chicken Brooder,Catalytic Poultry House Heating System |
||
Product Description
CE Infrared Catalytic Gas Chick Heater Brooder For Poultry Farm Heating System
Production Induction

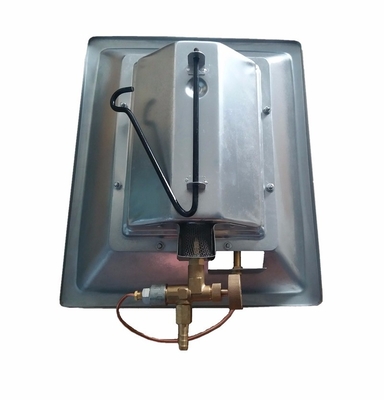

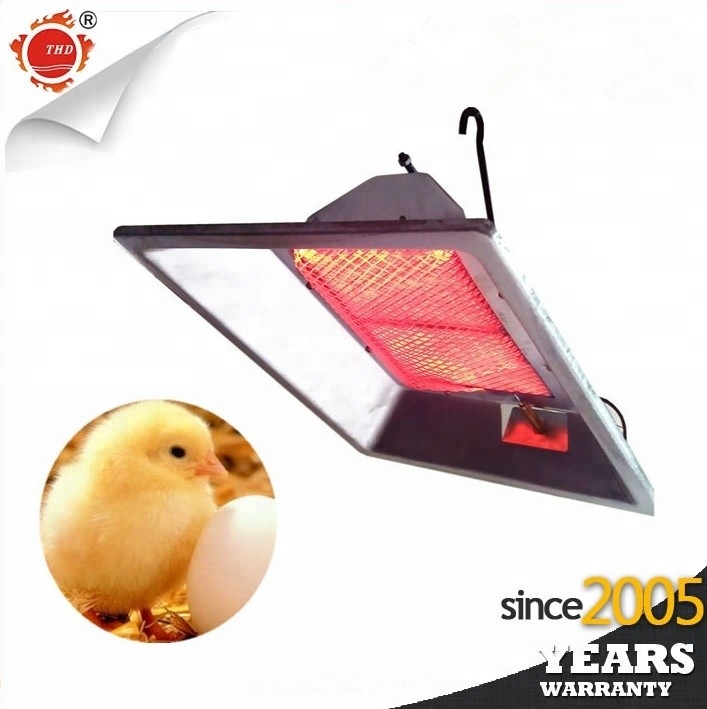

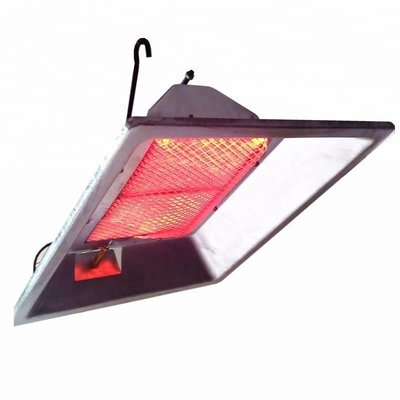

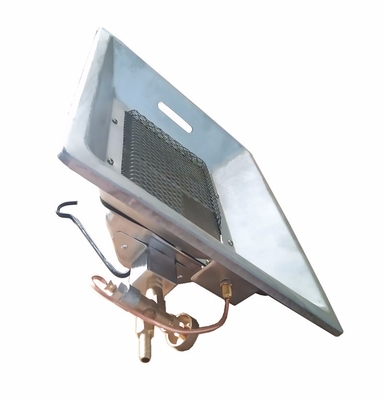

Chicken poultry gas brooder
Infrared body offers cost effective and can install in all direction. Our infrared gas brooder offer high intensity medium-long wave and low gas consumption up to 20%. It widly be used in the farm to keep the livestock warm.
|
MODEL |
N.W. | Dimension | Gas Consumption | Heat output |
|
|
kg | |||
|
THD2606
|
1.7
|
Out over 320*270*130 | 0.24m3/h 0.18kg/h | 2.46Kw/h 2116Kcal/h |
Working gas source: natural gas / liquefied gas - 2800 ~ 5000pa; biogas more than 8000pa. When the air pressure is much higher than the working pressure, should to install pressure reducing valve at front (such as liquefied gas); when below the operating pressure, it’s required to install pressure pump(such as biogas).
System components: Manual ignition section required -- gas source, the main valve, pressure reducing valve, gas pressure gauge, manual gas heater.
Automatic ignition section required -- gas source, the main valve, pressure reducing valve, gas pressure
gauge, temperature control cabinet, thermocouple, automatic gas
heater and ignition parts
Operating Steps
Our Advantage
This heater uses catalytic combustion technology, has a higher heat conversion capacity. Under the same air consumption, it releases more heat and produces less waste gas.
1. Economical & Energy saving: in the same power, our heater saves 30%~60% cost than electric heater.
2. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
3. High efficiency: thermal conversion rate ≥90%
4. Flameout protection device: when the flameout occurs, the valve automatically closes the gas to prevent gas leakage.
5. Radiation area: suspended from the ground at 0.9 ~ 1.5m high radiation area of 10 ~ 20 square meters, heating 600 ~ 1500 chickens.
6. Silent, light and comp
Application
Poultry livestock heating:widely used in poultry heating,farrowing,nursery,grower-finisher,wean-to-finish,greenhouse etc.
Notice
◆Each gas matches special nozzle, don't change it by yourself.
◆If use LPG, pressure reducing valve &pressure gauge are necessory.
◆Connect all the parts required, check gas leakage or not.
◆Sure the requied Gas Pressure: LPG/ Natural gas 3~5Kpa, Biogas ≥ 8Kpa.
◆Only manual type could use biogas, don't try on automatic type brooder.
Company Introduction
Established in 2005, Chongqing Haodong Technology Co., Ltd is a manufacturer specialized in the research, development and production of infrared catalytic burner, heater, brooder. We are located in Chongqing, with convenient transportation access.
The products depend on the patent technique which is advanced in the field. The high performance Oxygen Storage Materials (OSM), the high specific surface area materials which can resist high temperature, the combustion catalyst and the correlated patent technique are all included.
