Round Gas Stove Catalytic BBQ Grill Burners Infrared For Food Baking
Key Attributes
Brand Name:
Purple Horn
Model Number:
Purple Horn235
Place of Origin:
China
Minimum Order Quantity:
2
Price:
Negotiable
Supply Ability:
5000pcs/month
Delivery Time:
3-7 workdays
Payment Terms:
T/T, Credit card, Western Union, PayPal, Dragon Pay, L/C
Standard Packaging:
Standard carton; Outer carton size: 31*39*33cm; Inner carton size: 38*28*16cm.
Product Custom Attributes
Highlight
Round BBQ Grill Burners
,Food Baking BBQ Grill Burners
,Catalytic Gas Stove Burners
Gas Type:
LPG, Natural Gas, Butane, Propane
Dimension:
235*235*65mm
Advantage 1:
20% Gas Saving Than Non-catalytst Infrared Gas Burner
Advantage 2:
Conversion Rate: Above 95%
Technology:
Covered With Rare Earth Catalyst On Ceramic Plate
Heat Output:
11542BTU/h, 2898Kcal/hr
Nozzle:
Brass
Application:
BBQ Grill, Food Baking Stove Etc
Product Description

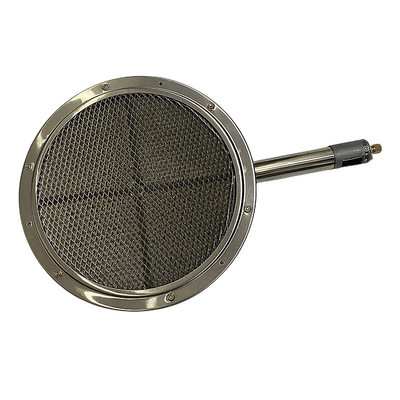

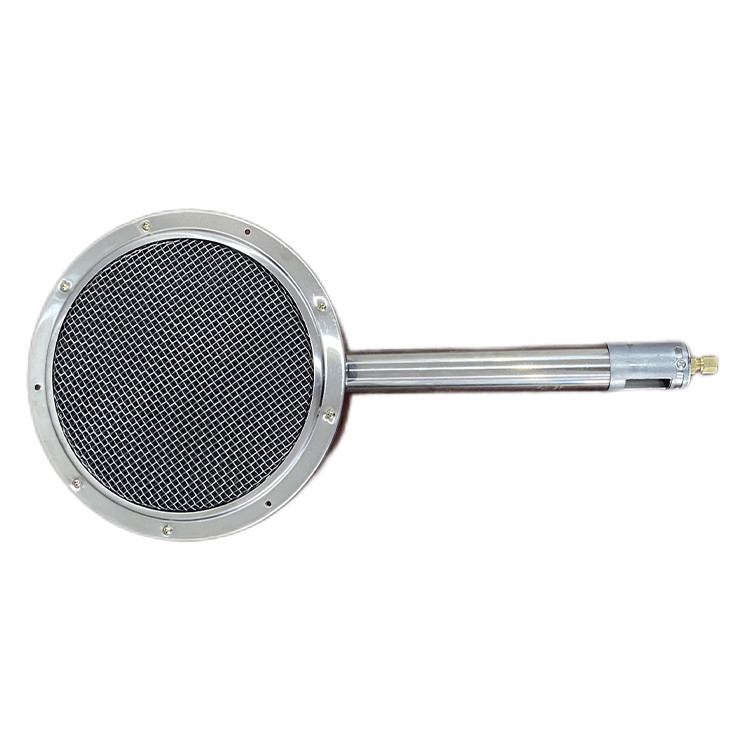

Round Gas Stove Infrared Catalytic Gas BBQ Grill Burners For Food Baking
Company profile
Established in 2005, Hefei Purple Horn E-Commerce Co., Ltd. is a manufacturer specializing in the research, development and production of infrared catalytic gas burners & heaters.
Description
On the basis of catalytic combustion, Hefei Purple Horn E-Commerce Co., Ltd. has developed and produced infrared catalytic burners which have been successfully applied in poultry farming warming, coating, foods drying and baking, drying process, heating at low and middle temperatures, and heat preservation.
These products save money for users in the process of producing and running and benefit the companies and society a lot in the economy and environmental protection.
Specifications
More models
| MODEL | Dimension | N.W. | Material | Heat Output | Gas Consumption | Application | ||
| mm | kg | BTU/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | |||
| Purple Horn170 | 170*80*55 | 0.4 | Galvanized sheet,430 stainless steelt, rare-earth ceramic heating part | 3600 | 910 | 0.11 | 0.08 | bbq grill, shawarma machine, donner roaster, gas stove etc. Heat-resistance glass cover could be supplied |
| Purple Horn6 | 345*67*55 | 0.64 | 6090 | 1522 | 0.20 | 0.14 | ||
| Purple Horn021 | 220*170*65 | 0.82 | 10000 | 2520 | 0.30 | 0.22 | ||
| Purple Horn237 | 237*170*75 | 0.8 | 10770 | 2714 | 0.31 | 0.22 | ||
| Purple Horn235 | 235*235*65 | 1.1 | 11542 | 2898 | 0.36 | 0.25 | ||
| Purple Horn310 | 310*310*80 | 1.88 | 20160 | 5080 | 0.62 | 0.44 | ||
| Purple Horn335 | 335*100*65 | 0.95 | Enamel,iron plate | 11780 | 2978 | 0.34 | 0.27 | |
| Purple Horn405 | 405*80*55 | 0.77 | Galvanized sheet,430 stainless steelt, rare-earth ceramic heating part | 8278 | 2065 | 0.24 | 0.21 | |
| Purple Horn530 | 535*93*60 | 1.23 | 12630 | 2986 | 0.37 | 0.30 | ||
| Purple Horn700 | 700*93*60 | 1.5 | 16210 | 4052 | 0.46 | 0.38 | ||
| Other service: ODM, you can provide drawings or designs, then we can suggest and produce for you. | ||||||||
Advantages
♦Energy efficient, 20% energy can be saved than non-catalytic infrared gas burner
♦ Conveyor rate: above 95%
♦Reliability, Silent, light and compact
♦Lower emissions to the air in the barn, CO≤80ppm;NOx≤10ppm;CHx≤50ppm
♦Low maintenance
♦Long useful time: ≥11000 hours
Application
Widely used for kinds of BBQ grill, shawarma machine, salamander, food baking oven etc.
