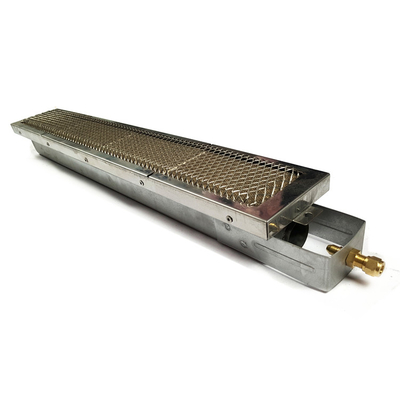

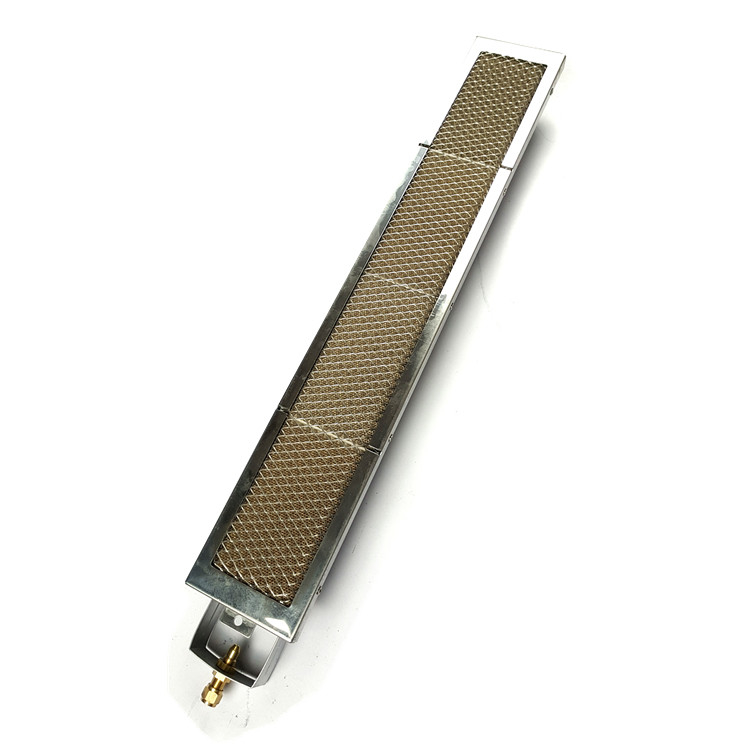

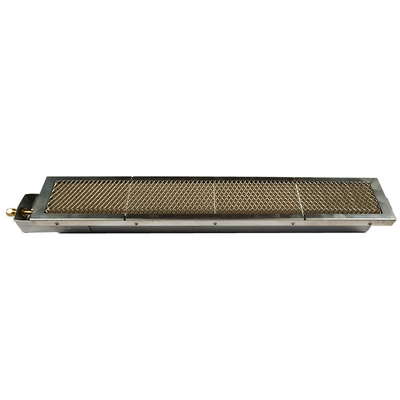

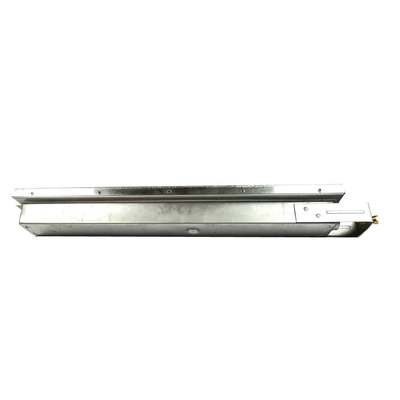

Gas Saving BBQ Grill Burners Infrared Catalytic Aluminized Steel For Food Baking

Key Attributes
Brand Name: Purple Horn
Model Number: HD538
Place of Origin: China
Minimum Order Quantity: 2
Price: Negotiable
Supply Ability: 5000pcs/month
Delivery Time: 3-7 workdays
Payment Terms: T/T, Credit card, Western Union, PayPal, Dragon Pay, L/C
Standard Packaging: Standard carton; Outer carton size: 31*39*33cm; Inner carton size: 38*28*16cm.
Product Custom Attributes
Highlight

Aluminized Steel BBQ Grill Burners

,

ODM BBQ Grill Burners

,

Catalytic Gas Saving Burner

Gas Type:
LPG(Liquefied Petroleum Gas), NG(Natural Gas), Butane, Propane
Dimension:
538*85*65mm
Advantages:
20% Gas Saving, Conveyor Rate Above 95%, High Efficiency
Technology:
Covered With Rare Earth Catalyst On Ceramic Plate
Warranty:
1 Year Without Human Factor
Heat Output:
13500BTU/h, 3400Kcal/hr
Working Gas Pressure:
2000-5000pa, 0.02-0.05bar
Other Service:
ODM, Contact Us For More Models Details
Product Description



Gas Saving Infrared Catalytic Gas BBQ Grill Burners For Food Baking​





Company profile



Established in 2005, Hefei Purple Horn Tech Co., Ltd is specialized in Infrared Catalytic Gas Burner, baby animal heater and BBQ burner, widely applied paint/biscuit baking/animal heating/outdoor bbq etc.

High quality ceramic plaque with rare-earth catalyst, successfully makes our burner heat conversion rate above 95% and 20% gas power be saved than ordinary gas burner, get good reputation from domestic and abroad customers.

Simple & Economic, Energy-save & Environmental friendly burner is looking forward your cooperation.





Description



On the basis of catalytic combustion, Hefei Purple Horn E-Commerce Co., Ltd. has developed and produced infrared catalytic burners which have been successfully applied in poultry farming warming, coating, foods drying and baking, drying process, heating at low and middle temperatures, and heat preservation.

These products save money for users in the process of producing and running and benefit the companies and society a lot in the economy and environmental protection.





Specifications



Gas Saving BBQ Grill Burners Infrared Catalytic Aluminized Steel For Food Baking 0

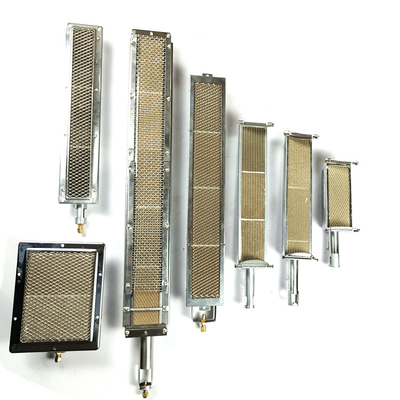

Other models



MODEL Dimension N.W. Material Heat Output Gas Consumption Application
  mm kg   BTU/h Kcal/hr NG(m3/h) LPG(kg/h)
HD220 220*170*60 0.9 Aluminized steel, rare-earth ceramic heating part 10000 2520 0.31 0.22 bbq grill, shawarma machine, donner roaster, gas stove etc.

Heat-resistance glass cover could be supplied
HD538 538*85*65 1.4 13500 3400 0.42 0.30
Purple Horn170 170*80*55 0.4 Galvanized sheet,430 stainless steelt, rare-earth ceramic heating part 3600 910 0.11 0.08
Purple Horn6 345*67*55 0.64 6090 1522 0.20 0.14
Purple Horn021 220*170*65 0.82 10000 2520 0.30 0.22
Purple Horn237 237*170*75 0.8 10770 2714 0.31 0.22
Purple Horn235 235*235*65 1.1 11542 2898 0.36 0.25
Purple Horn310 310*310*80 1.88 20160 5080 0.62 0.44
Purple Horn335 335*100*65 0.95 Enamel,iron plate 11780 2978 0.34 0.27
Purple Horn405 405*80*55 0.77 Galvanized sheet,430 stainless steelt, rare-earth ceramic heating part 8278 2065 0.24 0.21
Purple Horn530 535*93*60 1.23 12630 2986 0.37 0.30
Purple Horn700 700*93*60 1.5 16210 4052 0.46 0.38
Other service: ODM





Advantages



♦ Energy efficient, 20% energy can be saved than non-catalytic infrared gas burner

♦ Conveyor rate: above 95%

♦ Reliability, Silent, light and compact

♦ Lower emissions to the air in the barn, CO≤80ppm;NOx≤10ppm;CHx≤50ppm

♦ Low maintenance, just keep the burner surface clean and gas supply normally

♦ Withstands high pressure washing

♦ Long useful time: ≥11000hr

Gas Saving BBQ Grill Burners Infrared Catalytic Aluminized Steel For Food Baking 1





Application



Widely used for kinds of BBQ grill, shawarma machine, salamander, food baking oven etc.



Gas Saving BBQ Grill Burners Infrared Catalytic Aluminized Steel For Food Baking 2





Certifications



Gas Saving BBQ Grill Burners Infrared Catalytic Aluminized Steel For Food Baking 3
