Natural LPG Poultry Heaters Automatic Ignition Infrared Heat Lamp For Chicks
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
| Certification: | CE |
| Model Number: | THD6808 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard carton; Outer carton size: 31*39*33cm; Inner carton size: 38*28*16cm. |
| Delivery Time: | 3-7 workdays |
| Payment Terms: | T/T, Credit card, Western Union, PayPal, Dragon Pay, L/C |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Gas Type: | Liquefied Petroleum Gas, Natural Gas, Butane, Propane | Dimension: | 675*235*95mm |
|---|---|---|---|
| Advantage 1: | 20% Gas Saving Than Non-catalytic Infrared Gas Burner | Advantage 2: | Conversion Rate: Above 95% |
| Technology: | Covered With Rare Earth Catalyst On Ceramic Plate | Lifespan: | Above 11000h |
| Shell Material: | Imported Aluminized Plate | Pressure Gauge: | 2000-5000pa (0.02-0.05bar) |
| Highlight: | Automatic Ignition LPG Poultry Heaters,Natural LPG Poultry Heaters,LPG Infrared Heat Lamp For Chicks |
||
Product Description

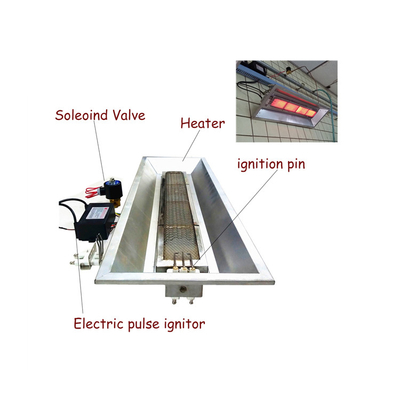

Automatic Ignition Control LPG Natural Infrared Brooder Heater For Chicken
Company profile
Established in 2005, Chongqing Haodong Technology Co., Ltd. is a manufacturer specializing in the research, development and production of infrared catalytic gas burners & heaters.
Description
Adopt the high quality import cordierite porous plate, adding rare earth catalyst to produce high quality infrared catalytic burner. Main advantages are energy-saving and reducing consumption, improving productivity, long life, easy to install and maintain, environmental protection and so on.
These series burners are widely used for chick house, piglet house, poultry farm, patio, warehouse heating etc.
Specifications
| MODEL | Dimension | Weight | Gas Type | Heat Output | Consumption | ||
| mm | kg | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | ||
| THD2606 | 320*270*130 | 1.7 | NG/LPG | 2.46 | 2116 | 0.26 | 0.18 |
| THD2608 | 320*270*130 | 2.7 | NG/LPG | 2.46 | 2116 | 0.26 | 0.18 |
| THD6806 | 675*235*95 |
2.8
|
NG/LPG | 3.9 | 3400 | 0.39 | 0.27 |
| THD6808 | 675*235*95 | 3.7 | NG/LPG | 3.9 | 3400 | 0.39 | 0.27 |
| THD5606 | 500*500*180 |
1.4
|
NG/LPG | 2.46 | 2116 | 0.26 | 0.18 |
System Overview
Usually the whole system includes:
1. Thermostat controller: setting temperature, and control the working of heaters, its customized to make control 1-40 sets heaters;
2. Pressure reducing valve: to get the appropriate gas pressure;
3. Pressure gauge: to reflect the gas pressure, it's important for the gas equipment;
WHY CHOOSE US?
1. Advantages
♦Energy saving: 10%-20% gas saving than other non-catalytic infrared gas heater;
♦ Conveyor rate: above 95%
♦Reliability, Silent, light and compact
♦Lower emissions to the air in the barn, CO≤80ppm;NOx≤10ppm;CHx≤50ppm
♦Low maintenance
♦ Withstands high pressure washing
♦Flame-out protection device
♦Long useful time: ≥11000hr
2. Company certifications
Manual model THD2606/THD6806
Operation of manual model
Application
Widely used for kinds of poultry farm, chick house, piglet house, birds brooding, patio, warehouse heating etc.
