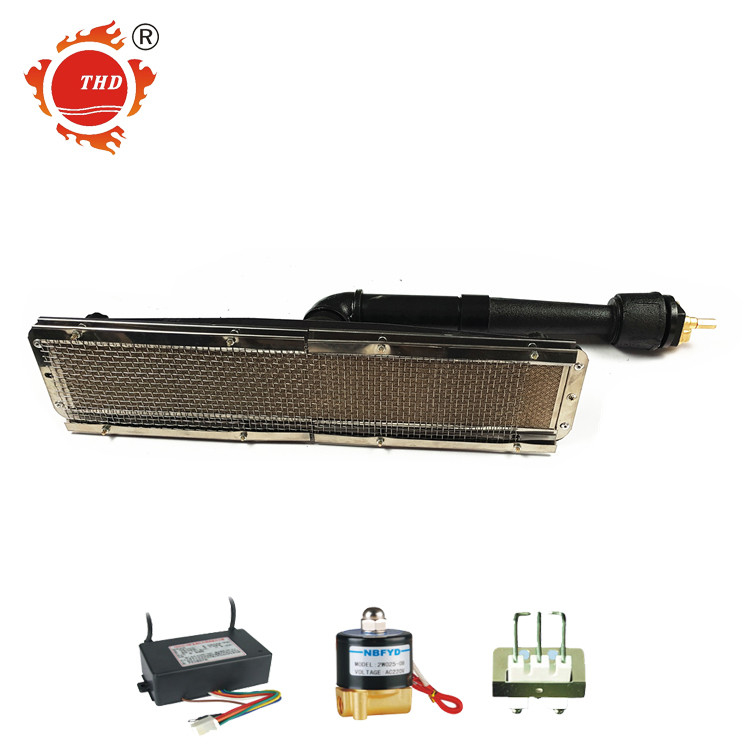

Compact Powder Coating Oven Gas Burner NG LPG Tunnel Oven High Efficiency
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
| Certification: | CE |
| Model Number: | HD162 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard carton; Outer carton size: 61*25*29cm; Inner carton size: 58*23*14cm. |
| Delivery Time: | 3-7 workdays |
| Payment Terms: | T/T, Western Union, PayPal, Dragon Pay, L/C |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Gas Type: | LPG, Natural Gas, Butane, Propane | Dimension(mm): | 570*130*175 |
|---|---|---|---|
| Advantage 1: | 20% Gas Saving Than Non-catalytic Infrared Ceramic Gas Burner | Advantage 2: | Conveyor Rate Above 95% |
| Technology: | Covered Rare Earth Catalyst On Honeycomb Ceramic Plate | Other Parts: | Industrial Regulator, Capsule Pressure Gauge, Thermostat, Overhead Conveyor Chain Line, Other Powder Coating Oven Equipment |
| High Light: | Powder Coating Oven Gas Burner High Efficiency,Compact Powder Coating Oven Gas Burner |
||
Product Description

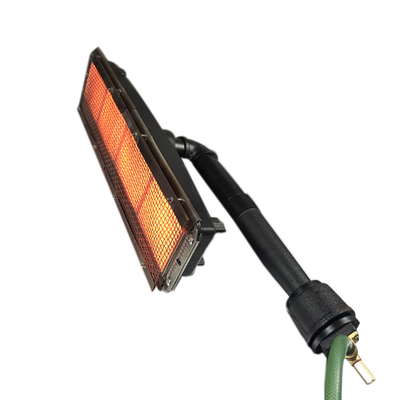

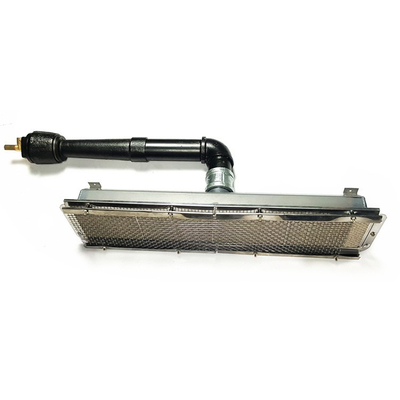

High Efficiency Powder Coating Oven Gas Burner For Industrial Tunnel Oven
Company profile
Established in 2005, Chongqing Haodong Technology Co., Ltd. is a manufacturer specializing in the research, development and production of industrial infrared catalytic gas burners.
Description
Adopt the high quality import cordierite porous plate, add rare earth catalyst on combustion plate to produce high quality infrared catalytic burner. Main advantages are energy-saving and reducing consumption, improving productivity, long lifespan, easy to install and maintain, environmental protection and so on.
These series burners are widely used for kinds of industrial oven, such as tunnel oven, powder coating oven, drying oven etc.
Specifications
| MODEL | Dimension | Weight | Gas Type | Heat Output | Consumption | ||
| mm | kg | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | ||
| HD82 | 219*164*108 | 4.8 | NG/LPG | 3.1 | 2700 | 0.24 | 0.24 |
| HD101 | 690*80*115 | 6.9 | NG/LPG | 3.9 | 3380 | 0.3 | 0.29 |
| HD162 | 570*130*175 |
5.9
|
NG/LPG | 6.3 | 5400 | 0.49 | 0.47 |
| HD410 | 410*175*220 | 8 | NG/LPG | 6.3 | 5400 | 0.49 | 0.47 |
| HD242 | 840*130*175 |
7.5
|
NG/LPG | 9.4 | 8120 | 0.75 | 0.71 |
| HD600 | 600*175*220 | 11.7 | NG/LPG | 9.4 | 8120 | 0.75 | 0.71 |
| HD262 | 930*130*175 |
7.8
|
NG/LPG | 10.9 | 9360 | 0.8 |
0.82
|
Advantages
♦ Energy efficient, as high as 20% energy can be saved when you use it
♦ Conveyor rate: above 95%
♦ Reliability, Silent, light and compact
♦ Lower emissions to the air in the barn, CO≤80ppm; NOx≤10ppm; CHx≤50ppm
♦ Low maintenance, its very easy to maintain, just keep the burner surface clean and gas supply normally.
♦ Withstands high pressure washing
♦ Long useful time: ≥11000hr
Application
1. Industrial oven: tunnel oven, powder coating oven, glove thermoforming line, curing oven, pre-heat processing etc;
2. Food baking oven: Biscuit baking line, puff food oven, tea drying machine, vegetable and fruit dehydration etc;
3. Glove thermoforming oven: disposable glove(nitrile, latex, rubber gloves) process line etc;
Other related parts
Electric pulse igniter, ignition pin, solenoid valve, industrial regulator, capsule pressure gauge, thermostat, overhead conveyor chain line, other powder coating oven equipment
